IEC 62443 Industrial Cybersecurity and Non-Disruptive OT Pentest Guide
An in-depth technical guide to ISA/IEC 62443 standards, Purdue Model architecture, and safe, non-disruptive penetration testing methodologies for industrial automation and critical infrastructure (OT / ICS / SCADA).
- Target Audience
- Manufacturing facilities, utilities, power grids, energy, petrochemicals, and critical infrastructure operators (OT / ICS / SCADA)
- Mandatory Frequency
- Annual risk assessment cycle, major system modifications, and scheduled plant turnaround shutdown windows
- Required Scope
- Purdue Model Levels 0-5, Level 3.5 Industrial DMZ, Zones & Conduits, SCADA, HMIs, PLCs, Historians, and industrial networks
- Non-Compliance Risk
- Unplanned production shutdown (plant trip), catastrophic machinery damage, environmental incidents, and physical personnel safety hazards
The ISA/IEC 62443 Framework and Purdue Enterprise Architecture
Overview of the four-tier IACS security standard and the Purdue reference model for industrial cybersecurity.
Purdue and the IDMZ are reference designs, not a universally mandated IEC 62443 architecture. Define zones, conduits and controlled data flows according to risk.
- Enterprise network — Business systems and users
- Industrial DMZ — Control data exchange
- Site operations — Supervisory and engineering systems
- Control and process — Controllers and production equipment
- Divided into 4 key tiers: 1-General (terminology and concepts), 2-Policies (security management system), 3-System (system requirements and zones), and 4-Component (hardware and firmware requirements).
- Purdue Enterprise Reference Architecture (PERA): Stratifies industrial operations from Level 0 (physical processes), Level 1 (PLCs/RTUs), Level 2 (HMIs), Level 3 (SCADA/operations), up to Level 4-5 (enterprise IT).
- Industrial DMZ (often shown as Level 3.5 in Purdue-based diagrams): a common segmentation design option. Select zones, conduits, boundary controls, and SL-T through the applicable risk assessment and requirements; do not present one Purdue topology as a universal IEC 62443 requirement.
- Establishes 4 distinct Security Levels (SL 1 casual/unintentional, SL 2 simple intentional, SL 3 sophisticated intentional, and SL 4 high-resource/nation-state) calibrated against adversary capabilities.
System Partitioning: Zones and Conduits under IEC 62443-3-2
Logical asset segmentation and communication channel protection using industrial deep packet inspection firewalls.
An explanatory overview. Read the article for scope, applicability and supporting evidence.

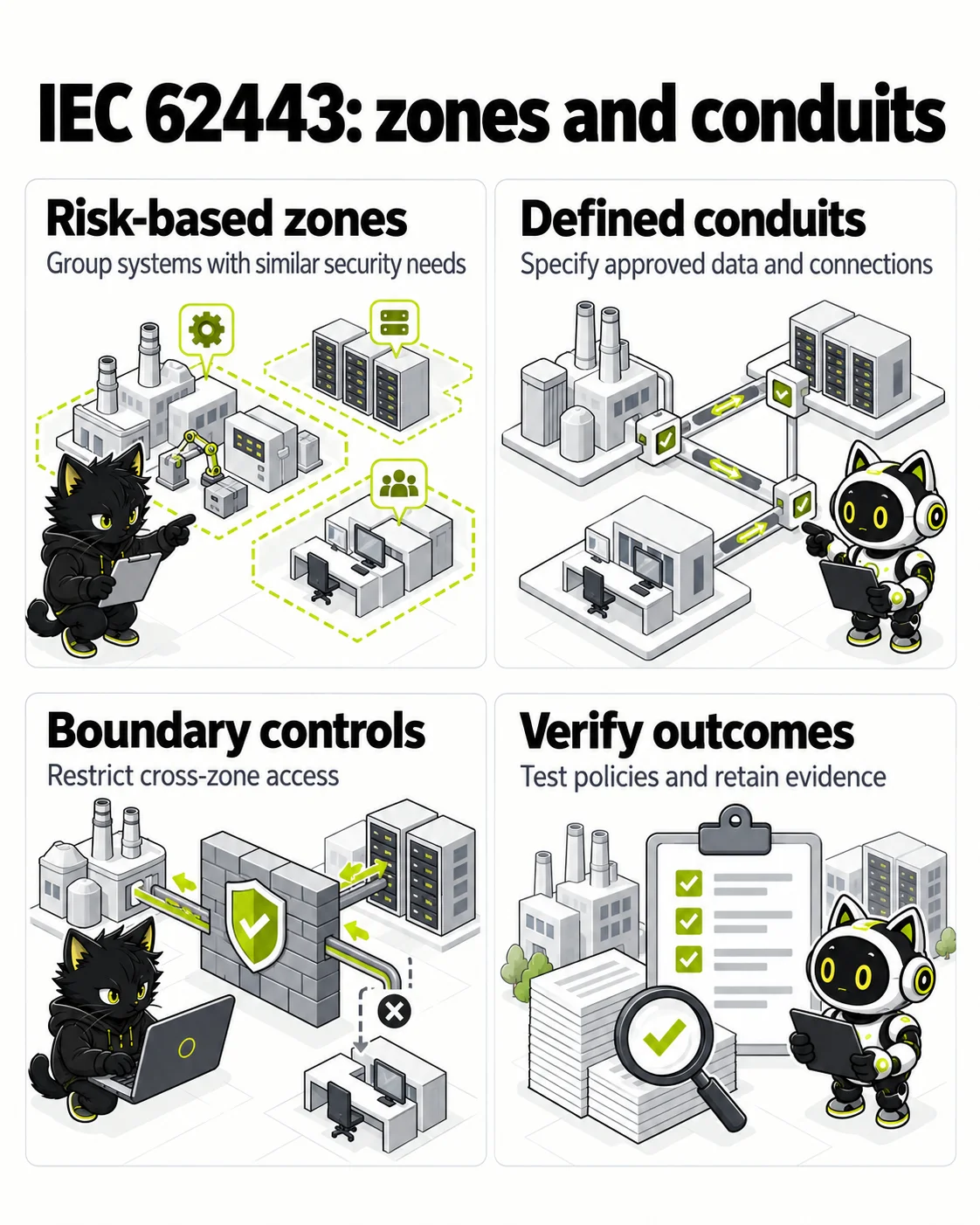

- Risk-based zones — Group systems with similar security needs
- Defined conduits — Specify approved data and connections
- Boundary controls — Restrict cross-zone access
- Verify outcomes — Test policies and retain evidence
- Security Zones (mandatory): Group cyber assets sharing identical security objectives to contain blast radius and prevent lateral movement.
- Conduits (mandatory): Dedicated, monitored communication pathways connecting security zones governed by strict access control lists.
- Deep Packet Inspection (DPI): Industrial firewalls decode function codes across Modbus TCP, DNP3, IEC 60870-5-104, OPC UA, and PROFINET payloads to block malicious commands.
- Restrict and explicitly authorize IT/OT cross-boundary communications according to risk and applicable restricted-data-flow requirements. An industrial DMZ is a common design option; assess every relevant communication path rather than assuming one Level 3.5 topology is universally required.
Safe, Non-Disruptive OT / SCADA Penetration Testing Methodologies
Safety-first rules of engagement for assessing industrial control systems without compromising plant operations or physical safety.
An explanatory overview. Read the article for scope, applicability and supporting evidence.

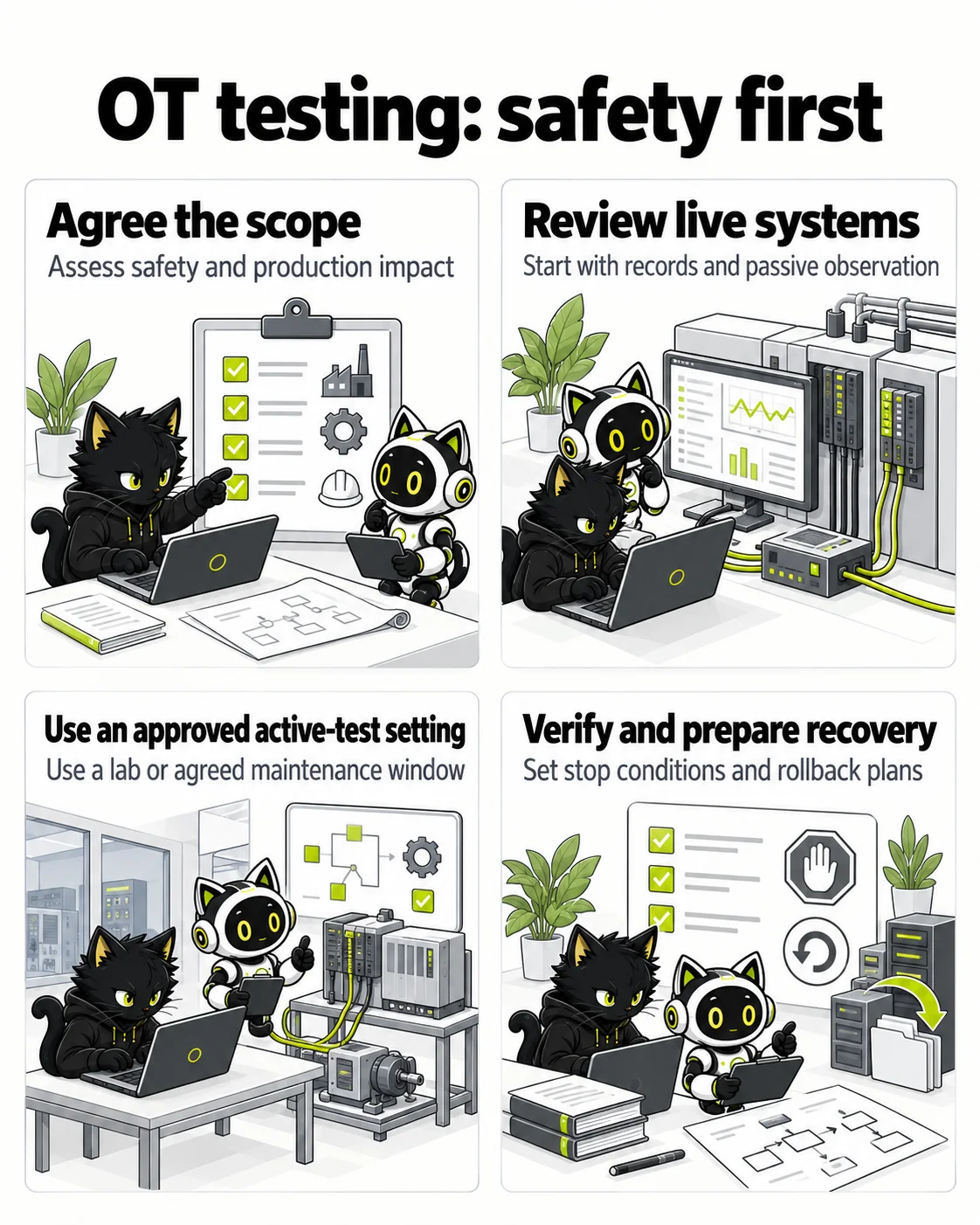

- Agree the scope — Assess safety and production impact
- Review live systems — Start with records and passive observation
- Use an approved active-test setting — Use a lab or agreed maintenance window
- Verify and prepare recovery — Set stop conditions and rollback plans
- Safety-First Cardinal Rule (strictly prohibited): Never execute aggressive port scans or automated denial-of-service/fuzzing payloads against active PLCs, RTUs, or Safety Instrumented Systems (SIS) during live production to prevent controller crashes and plant trips.
- Recommended baseline: Prioritize passive network monitoring via SPAN/mirror ports and network TAPs for non-intrusive asset discovery and industrial protocol baseline analysis.
- Active penetration testing scope: Focus active testing on the Level 3.5 Industrial DMZ, auditing jump hosts, testing firewall egress, and assessing historian database vulnerabilities.
- Invasive controller testing: Confine invasive protocol fuzzing, controller exploitation, and firmware extraction to hardware test benches, digital twins, or scheduled turnaround shutdown periods.
- Testing teams must hold specialized industrial certifications (e.g. GICSP, GRID, ISA/IEC 62443 Cybersecurity Specialist) and adhere to facility safety induction protocols.
Requirements and Testing Scope Matrix
Summary of the referenced clauses, the testing scope they cover, and the expected evaluation cycle.
| Reference | Mandate Title | Scope Required | Testing Cycle |
|---|---|---|---|
| IEC 62443-3-2 | Risk Assessment and Partitioning into Zones and Conduits | Inventory IACS/SCADA assets, conduct detailed risk assessments, and establish logical zones and monitored conduits | Initial design phase and reviewed during plant upgrades or major operational modifications |
| IEC 62443-3-3 | System Security Requirements and Security Levels (SL 1-4) | Verify Security Level Target (SL-T) requirements, access enforcement, industrial protocol inspection (DPI), and IDMZ 3.5 controls | Periodic configuration audits and annual boundary penetration tests |
| IEC 62443-2-4 / 4-1 | Service Provider Integration and Secure Development Lifecycle | Assess vendor remote maintenance security, third-party contractor access, and controller firmware integrity | Pre-procurement review and commissioning verification |
| Non-Disruptive OT Testing Policy | Safety-First Non-Disruptive OT Penetration Testing Methodology | Deploy passive network capture, validate Level 3.5 IDMZ boundaries, and prohibit aggressive active scanning against live PLCs and safety systems | Annual perimeter testing with invasive testing restricted to staging labs or plant turnaround shutdown periods |
Compliance Readiness Self-Assessment
Select items your organization has completed to evaluate your readiness score.
Frequently Asked Questions (FAQ)
Key answers and practical guidance addressing common compliance questions.
Why can't standard IT penetration testing tools and scanners be used on OT networks?
OT assets such as PLCs, RTUs, and safety controllers operate with real-time microkernels and fragile network stacks. Standard IT port scans and aggressive vulnerability payloads can cause buffer overflows, controller lockups, or plant trips. OT testing mandates non-disruptive, safety-first methodologies.
What is the role of the Level 3.5 Industrial DMZ in IEC 62443?
The IDMZ establishes a strict trust boundary between enterprise corporate IT (Levels 4-5) and plant operations (Levels 0-3). Direct routing between IT and production controllers is strictly prohibited; all access must terminate at secured jump hosts, data diodes, or replicated historians inside the IDMZ to prevent IT ransomware from propagating to operational floors.
How can intrusive testing or firmware reverse engineering be performed on industrial controllers?
Intrusive tests such as protocol fuzzing and firmware extraction must be conducted in isolated staging labs using identical spare hardware, software digital twins, or during scheduled plant turnaround shutdown windows when live production is paused.
